Pallet arrangement

Proper pallet placement ensures safety and cost optimization in transport. Learn how to prepare your cargo according to the standards.

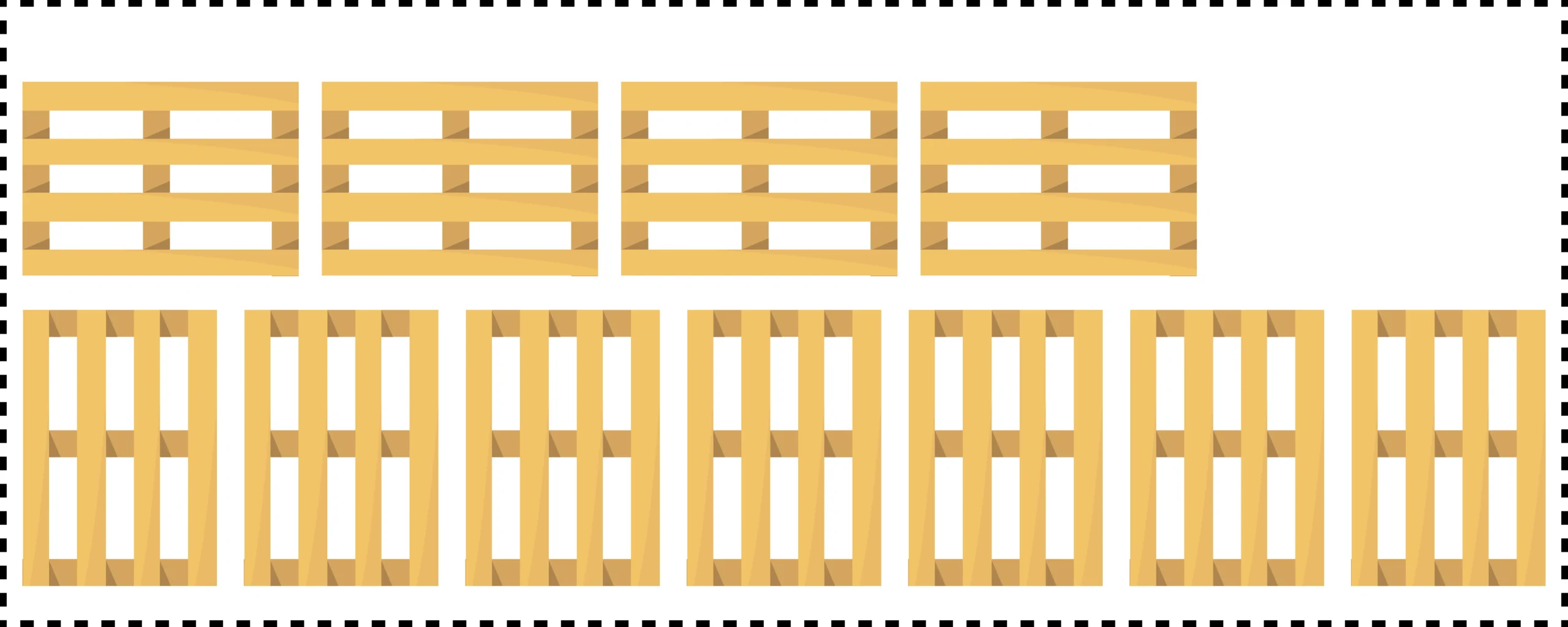

20 ft universal sea container

For goods that do not extend beyond the pallet footprint
Number of Euro pallets
11
Number of layers
1
Pallet dimensions
800 x 1200 mm
Number of Euro pallets
9
Number of layers
1
Pallet dimensions
800 x 1200 mm
Number of Euro pallets
10
Number of layers
1
Pallet dimensions
800 x 1200 mm

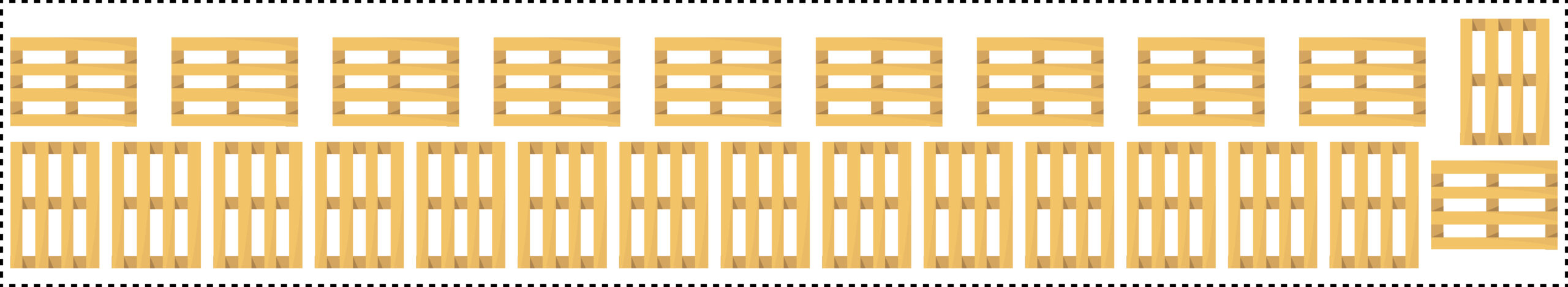

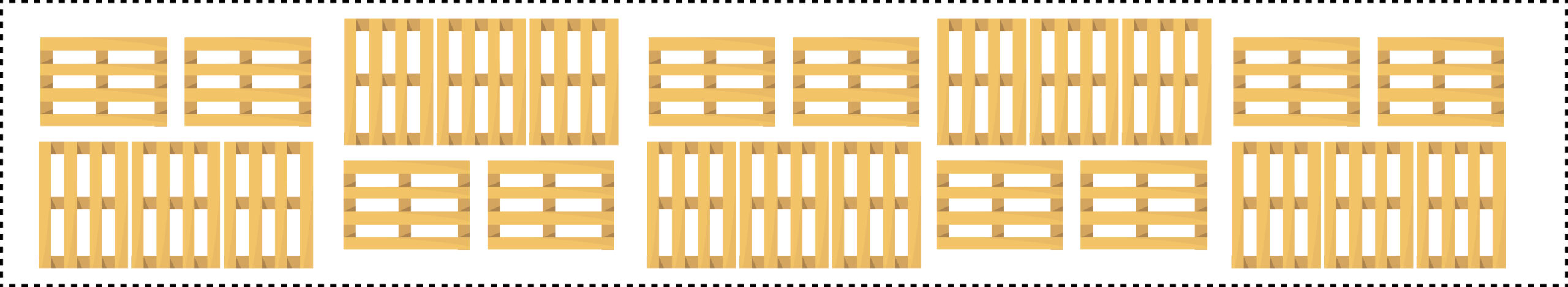

40 ft universal sea container

For goods that do not extend beyond the pallet footprint
Number of Euro pallets
24
Number of layers
1
Pallet dimensions
800 x 1200 mm
Number of Euro pallets
25
Number of layers
1
Pallet dimensions
800 x 1200 mm
Number of Euro pallets
20
Number of layers
1
Pallet dimensions
800 x 1200 mm
Number of Euro pallets
21
Number of layers
1
Pallet dimensions
800 x 1200 mm

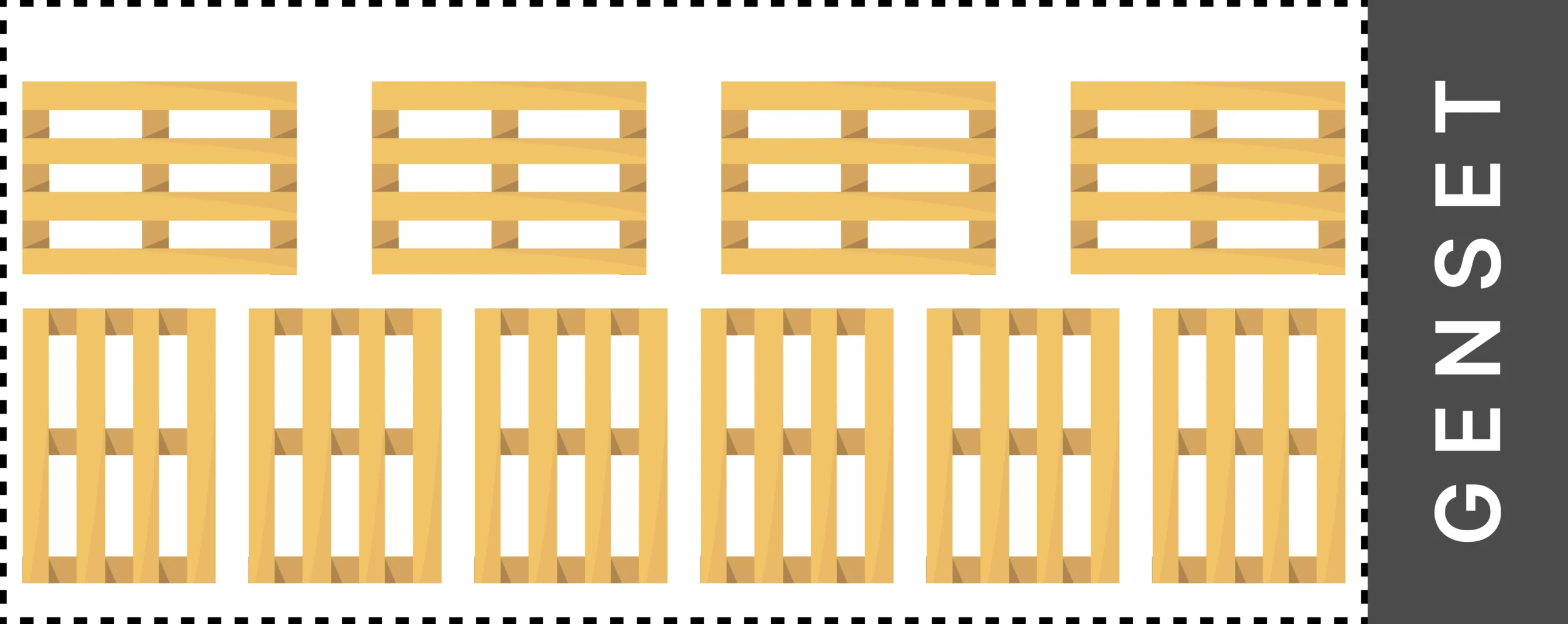

20 ft reefer (refrigerated) sea container

For goods that do not extend beyond the pallet footprint
A minimum of 12 cm is required between the loaded cargo and the container roof.
The cargo must not be placed beyond the red line painted inside the container.
Number of Euro pallets
10
Number of layers
1
Pallet dimensions
800 x 1200 mm
Number of Euro pallets
9
Number of layers
1
Pallet dimensions
800 x 1200 mm

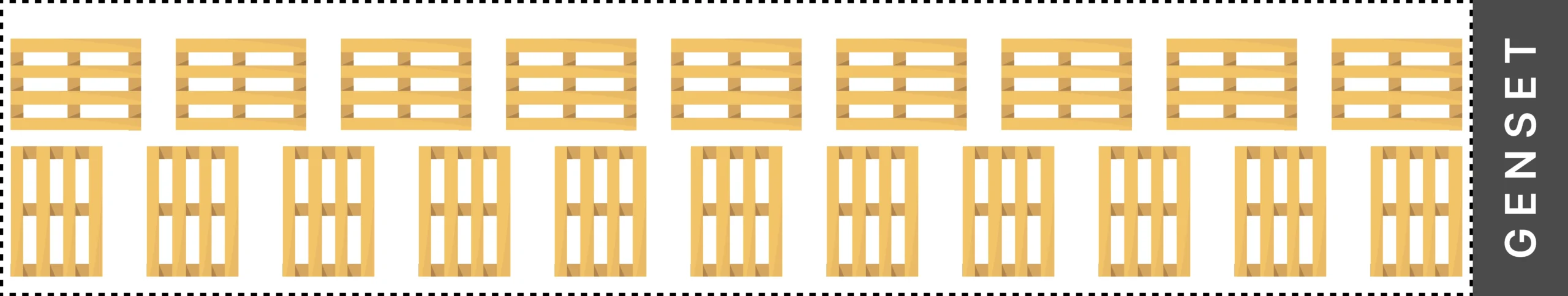

20 ft High Cube reefer (refrigerated) sea container

For goods that do not extend beyond the pallet footprint
A minimum of 12 cm is required between the loaded cargo and the container roof.
The cargo must not be placed beyond the red line painted inside the container.
Number of Euro pallets
23
Number of layers
1
Pallet dimensions
800 x 1200 mm
Number of Euro pallets
20
Number of layers
1
Pallet dimensions
800 x 1200 mm
