Sea containers

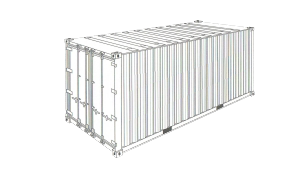

20 ft DV (Dry Van) container
Internal dimensions
Length
5900 mm
Width
2350 mm
Height
2395 mm
Door opening dimensions
Height
2292 mm
Width
2340 mm
Capacity
Max CBM / m3
33,2
Weight
Container tare weight / kg
2370
Max Payload * / kg
30130

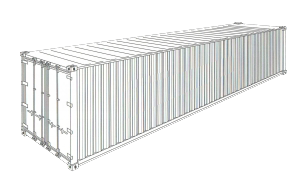

40 ft DV (Dry Van) container
Internal dimensions
Length
12032 mm
Width
2352 mm
Height
2395 mm
Door opening dimensions
Height
2292 mm
Width
2340 mm
Capacity
Max CBM / m3
67,7
Weight
Container tare weight / kg
3980
Max Payload * / kg
28520

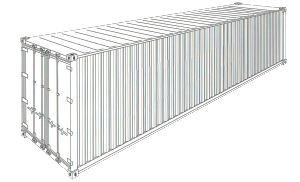

40 ft High Cube container
Internal dimensions
Length
12032 mm
Width
2350 mm
Height
2700 mm
Door opening dimensions
Height
2597 mm
Width
2340 mm
Capacity
Max CBM / m3
76,3
Weight
Container tare weight / kg
4010
Max Payload * / kg
28490
40 ft Pallet Wide container
Internal dimensions
Length
12098 mm
Width
2426 mm
Height
2379 mm
Door opening dimensions
Height
2282 mm
Width
2358 mm
Capacity
Max CBM / m3
76,3
Weight
Container tare weight / kg
4100
Max Payload * / kg
29900
40 ft High Cube Pallet Wide container
Internal dimensions
Length
12098 mm
Width
2426 mm
Height
2683 mm
Door opening dimensions
Height
2586 mm
Width
2358 mm
Capacity
Max CBM / m3
79,0
Weight
Container tare weight / kg
4350
Max Payload * / kg
29650

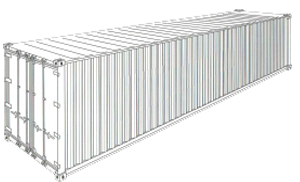

45 ft High Cube container
Internal dimensions
Length
13553 mm
Width
2426 mm
Height
2694 mm
Door opening dimensions
Height
2585 mm
Width
2374 mm
Capacity
Max CBM / m3
88,7
Weight
Container tare weight / kg
4650
Max Payload * / kg
29550
45 ft High Cube Pallet Wide container
Internal dimensions
Length
13553 mm
Width
2438 mm
Height
2694 mm
Door opening dimensions
Height
2585 mm
Width
2442 mm
Capacity
Max CBM / m3
88,7
Weight
Container tare weight / kg
4950
Max Payload * / kg
29550
*subject to weight restrictions in land transport
Specialized sea containers

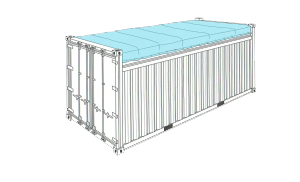

20 ft Open Top container
Internal dimensions
Length
5895 mm
Width
2350 mm
Height
2380 mm
Door opening dimensions
Height
2280 mm
Width
2338 mm
Wymiary otwarty dach
Length
5338 mm
Width
2230 mm
Capacity
Max CBM / m3
32,5
Weight
Container tare weight / kg
2250
Max Payload * / kg
30250
20 ft High Cube Open Top container
Internal dimensions
Length
5898 mm
Width
2352 mm
Height
2653 mm
Door opening dimensions
Height
2585 mm
Width
2340 mm
Wymiary otwarty dach
Length
5682 mm
Width
2232 mm
Capacity
Max CBM / m3
36,8
Weight
Container tare weight / kg
2510
Max Payload * / kg
27970

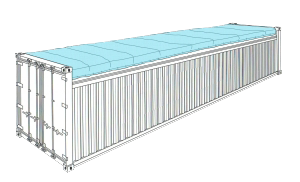

40 ft Open Top container
Internal dimensions
Length
12029 mm
Width
2350 mm
Height
2380 mm
Door opening dimensions
Height
2276 mm
Width
2340 mm
Wymiary otwarty dach
Length
11552 mm
Width
2230 mm
Capacity
Max CBM / m3
66,8
Weight
Container tare weight / kg
4050
Max Payload * / kg
28450
40 ft Open Top High Cube container
Internal dimensions
Length
12025 mm
Width
2350 mm
Height
2680 mm
Door opening dimensions
Height
2585 mm
Width
2340 mm
Wymiary otwarty dach
Length
11550 mm
Width
2190 mm
Capacity
Max CBM / m3
74,9
Weight
Container tare weight / kg
4250
Max Payload * / kg
28250
20 ft Hard Top container
Internal dimensions
Length
5886 mm
Width
2342 mm
Height
2375 mm
Door opening dimensions
Height
2280 mm
Width
2336 mm
Wymiary otwarty dach
Length
5596 mm
Width
2196 mm
Capacity
Max CBM / m3
32,8
Weight
Container tare weight / kg
2590
Max Payload * / kg
27890
40 ft Hard Top container
Internal dimensions
Length
12020 mm
Width
2342 mm
Height
2388 mm
Door opening dimensions
Height
2292 mm
Width
2336 mm
Wymiary otwarty dach
Length
11724 mm
Width
2208 mm
Capacity
Max CBM / m3
67,2
Weight
Container tare weight / kg
4700
Max Payload * / kg
25780
40 ft High Cube Hard Top container
Internal dimensions
Length
12022 mm
Width
2340 mm
Height
2595 mm
Door opening dimensions
Height
2580 mm
Width
2340 mm
Wymiary otwarty dach
Length
11724 mm
Width
2212 mm
Capacity
Max CBM / m3
76
Weight
Container tare weight / kg
5200
Max Payload * / kg
27300

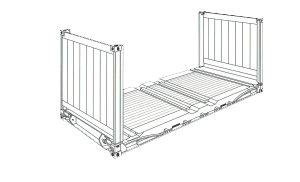

20 ft Flat Rack container
Internal dimensions
Length
6038 / 5500 mm
Width
2438 mm
Height
2233 mm
Door opening dimensions
Height
-
Width
-
Capacity
Max CBM / m3
-
Weight
Container tare weight / kg
2900
Max Payload * / kg
42100

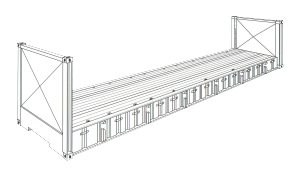

40 ft Flat Rack container
Internal dimensions
Length
12048 /11600 mm
Width
2438 mm
Height
2233 mm
Door opening dimensions
Height
-
Width
-
Capacity
Max CBM / m3
-
Weight
Container tare weight / kg
4200
Max Payload * / kg
40800

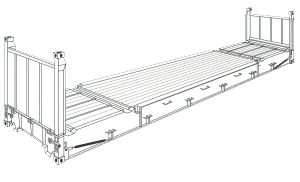

40 ft High Cube Flat Rack container
Internal dimensions
Length
12048 /11600 mm
Width
2438 mm
Height
2264 mm
Door opening dimensions
Height
-
Width
-
Capacity
Max CBM / m3
-
Weight
Container tare weight / kg
5900
Max Payload * / kg
49100
40 ft Super Racks container
Internal dimensions
Length
12176 mm
Width
2438 mm
Height
1950 mm
Door opening dimensions
Height
-
Width
-
Capacity
Max CBM / m3
-
Weight
Container tare weight / kg
5600
Max Payload * / kg
39400

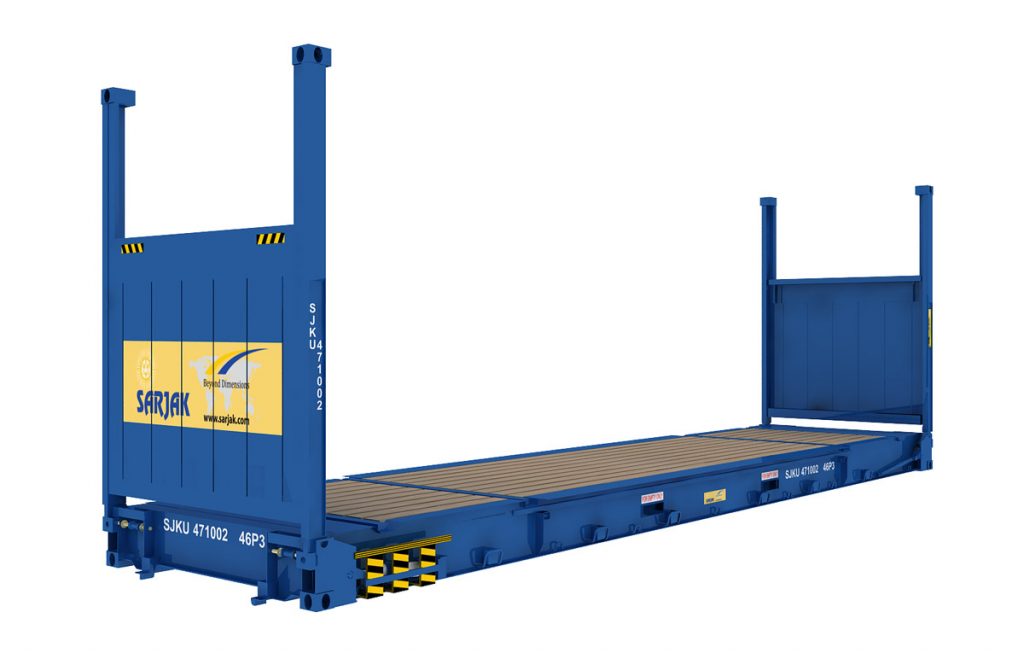

40 ft High Cube Super Racks container
Internal dimensions
Length
12172 mm
Width
2438 mm
Height
2264 mm
Door opening dimensions
Height
-
Width
-
Capacity
Max CBM / m3
-
Weight
Container tare weight / kg
6000
Max Payload * / kg
44000

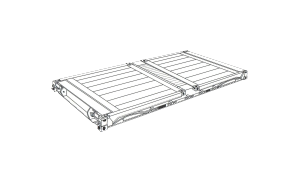

20 ft platform
Internal dimensions
Length
6058 mm
Width
2438 mm
Height
-
Door opening dimensions
Height
-
Width
-
Capacity
Max CBM / m3
-
Weight
Container tare weight / kg
2900
Max Payload * / kg
42100

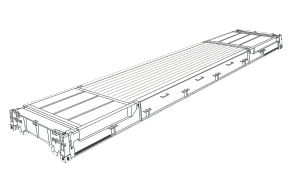

40 ft platform
Internal dimensions
Length
12192 mm
Width
2438 mm
Height
-
Door opening dimensions
Height
-
Width
-
Capacity
Max CBM / m3
-
Weight
Container tare weight / kg
5850
Max Payload * / kg
49150
*subject to weight restrictions in land transport
Refrigerated sea containers (reefers)

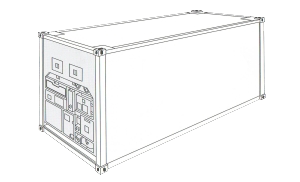

20 ft Reefer container
A minimum of 12 cm of free space is required between the container roof and the cargo
Internal dimensions
Length
5535 mm
Width
2284 mm
Height
2224 mm
Door opening dimensions
Height
2264 mm
Width
2290 mm
Capacity
Max CBM / m3
28,7
Weight
Container tare weight / kg
2905
Max Payload * / kg
27575

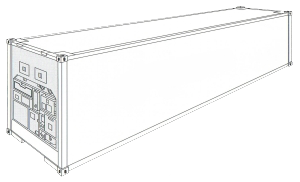

40 ft Reefer container
A minimum of 12 cm of free space is required between the container roof and the cargo
Internal dimensions
Length
11563 mm
Width
2294 mm
Height
2161 mm
Door opening dimensions
Height
2188 mm
Width
2288 mm
Capacity
Max CBM / m3
60,0
Weight
Container tare weight / kg
4600
Max Payload * / kg
29400
40 ft High Cube Reefer container
A minimum of 12 cm of free space is required between the container roof and the cargo
